10 m

92190 EAN: 4007529921904 PD3N-1C-SM

230V PIR motion detector with 360° detection and a range of up to Ø10m (78 m²), remote-controlled

Type of contact (k)
1x µ-contact, NO contact with tungsten pre-make contact
1x µ-contact, NO contact with tungsten pre-make contact
1x µ-contact, dry NO contact with tungsten pre-make contact
Show available options
Mounting
surface-mounted
flush-mounted
surface-mounted
ceiling-mounted
Communication interface
switching output, switching output (1 Channel)
switching output, switching output (1 Channel)
switching output, switching output (2 Channel)
Show available options
Colour
white
white
black
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz

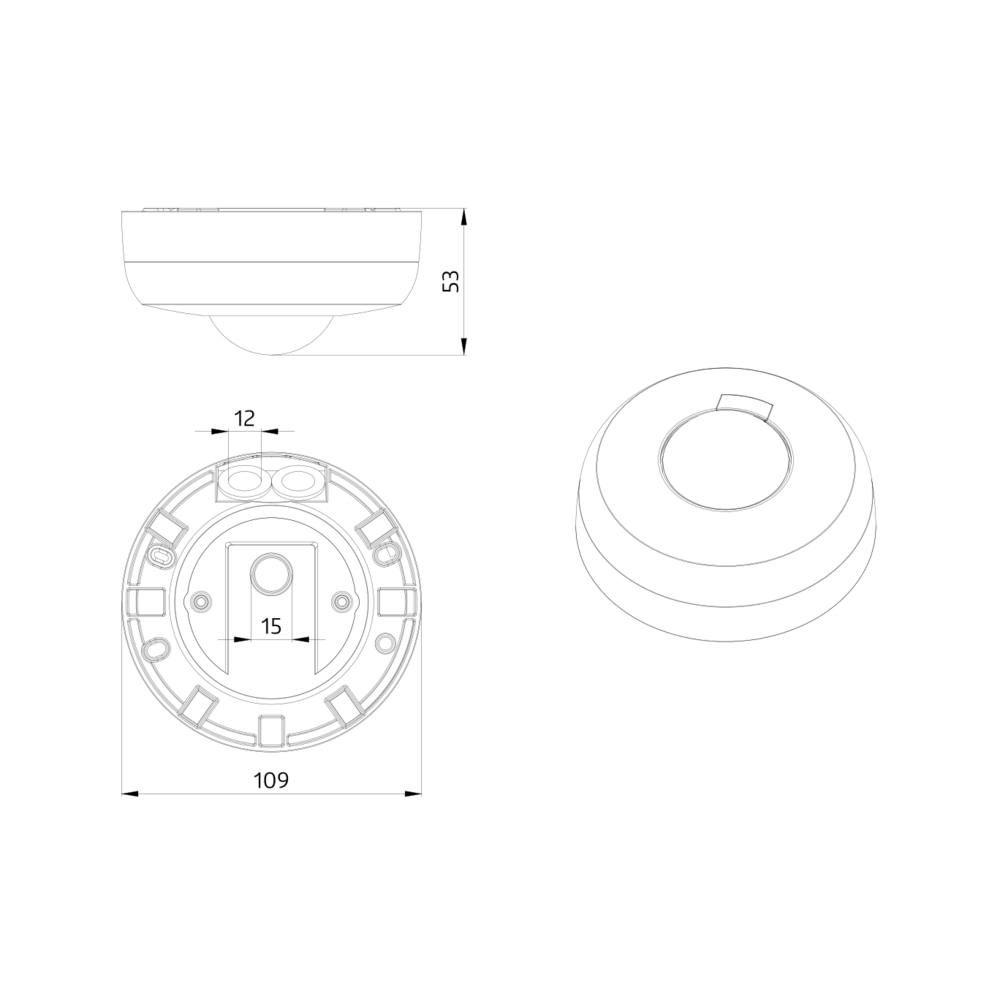

Dimensions: Ø 106 x 53 mm
Power consumption: approx. 0.5 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP44 / Class II
Impact strength: IK04
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Channel 1 (lighting control)
Designation Value
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
800 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact (k): 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux

Remote control-capable ceiling motion detector

One channel for light switching

Zero crossing switching

Special optical system for detection of even the smallest movements

Uninterrupted parallel circuit detection of several detectors

Manual switching via push-button possible

Additional functions can be set up using the optional remote control.

Factory settings 10 min and 500 lux

Application examples:
corridors/hallways, staircases, toilets, equipment rooms

10880

RC-Arc extinction kit

  • Voltage: 230 V AC ±10%
  • Dimensions: 38 x 12 x 26 mm
  • Degree / class of protection: IP20 / Class II
Go to product
10882

Mini-RC-Arc extinction kit

  • Voltage: 230 V AC ±10%
  • Dimensions: 50 x 23 x 8 mm
  • Degree / class of protection: IP20 / Class II
Go to product
93067

BLE-IR-Adapter

  • Dimensions: 40 x 55 x 103 mm
  • Material color: black
  • Frequency: 2.4 GHz ISM band, GFSK 0.2 dBm + 5.3 dBi = 5.5 dBm
Go to product
93110

IR-PD3/4N-1C-E

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 80 x 60 x 8 mm
  • Material color: -
Go to product
Product no longer available
92105

IR-PD3N

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 80 x 60 x 8 mm
  • Material color: -
Go to product
92159

IR-PD-Mini

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 57 x 35 x 7 mm
  • Material color: -
Go to product
92199

Wire basket BSK (Ø 200 x 90 mm)

  • Dimensions: Ø 200 x 90 mm
  • Impact strength: IK09
  • Housing: coated steel basket
Go to product
37367

Blinds PD2N/PD3N

  • Housing: ABS
Go to product
white
93179

Pendulum mounting set PD2/3/4 SM

  • Dimensions: 1 : Ø 113 x 79 mm, 2 : Ø 113 x 34 mm
  • Housing: polycarbonate, UV-resistant
  • Material color: white, similar to RAL9010
Go to product
jet black
93193

Pendulum mounting set PD2/3/4 SM

  • Dimensions: 1 : Ø 113 x 79 mm, 2 : Ø 113 x 34 mm
  • Housing: polycarbonate, UV-resistant
  • Material color: jet black, similar to RAL9005
Go to product
Tender document 92190 Downloads
CE declaration of conformity 92190 (en) Downloads
Short instruction Downloads
Manual Downloads

Select the software of function upgrade licences you would like to request:

10880

RC-Arc extinction kit

  • Voltage: 230 V AC ±10%
  • Dimensions: 38 x 12 x 26 mm
  • Degree / class of protection: IP20 / Class II
Go to product
10882

Mini-RC-Arc extinction kit

  • Voltage: 230 V AC ±10%
  • Dimensions: 50 x 23 x 8 mm
  • Degree / class of protection: IP20 / Class II
Go to product
93067

BLE-IR-Adapter

  • Dimensions: 40 x 55 x 103 mm
  • Material color: black
  • Frequency: 2.4 GHz ISM band, GFSK 0.2 dBm + 5.3 dBi = 5.5 dBm
Go to product
93110

IR-PD3/4N-1C-E

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 80 x 60 x 8 mm
  • Material color: -
Go to product
92105

IR-PD3N

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 80 x 60 x 8 mm
  • Material color: -
Go to product
92159

IR-PD-Mini

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 57 x 35 x 7 mm
  • Material color: -
Go to product
92199

Wire basket BSK (Ø 200 x 90 mm)

  • Dimensions: Ø 200 x 90 mm
  • Impact strength: IK09
  • Housing: coated steel basket
Go to product
37367

Blinds PD2N/PD3N

  • Housing: ABS
Go to product
93179

Pendulum mounting set PD2/3/4 SM

  • Dimensions: 1 : Ø 113 x 79 mm, 2 : Ø 113 x 34 mm
  • Housing: polycarbonate, UV-resistant
  • Material color: white, similar to RAL9010
Go to product
93193

Pendulum mounting set PD2/3/4 SM

  • Dimensions: 1 : Ø 113 x 79 mm, 2 : Ø 113 x 34 mm
  • Housing: polycarbonate, UV-resistant
  • Material color: jet black, similar to RAL9005
Go to product

*Mandatory field

Please note our privacy policy.

Alternative

10 m
white
92196

PD3N-1C-FC

  • Voltage: 110 – 240 V AC 50 / 60 Hz
  • Dimensions: Ø 83 x 81 mm
  • Power consumption: approx. 0.5 W
Go to product
10 m
white
92219

PD3N-1C-SM Micro

  • Voltage: 110 – 240 V AC 50 / 60 Hz
  • Dimensions: Ø 106 x 53 mm
  • Power consumption: approx. 0.5 W
Go to product

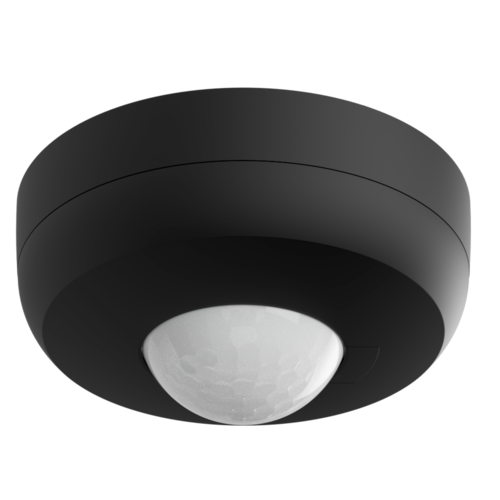

10 m
