10 m

93093 EAN: 4007529930937 PD3N-1C-SM Micro

230V PIR motion detector with 360° coverage and a range of up to Ø10meters (78 m²), featuring an acoustic sensor and remote control functionality

Mounting
surface-mounted
ceiling-mounted
surface-mounted
Colour
black
white
black
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz

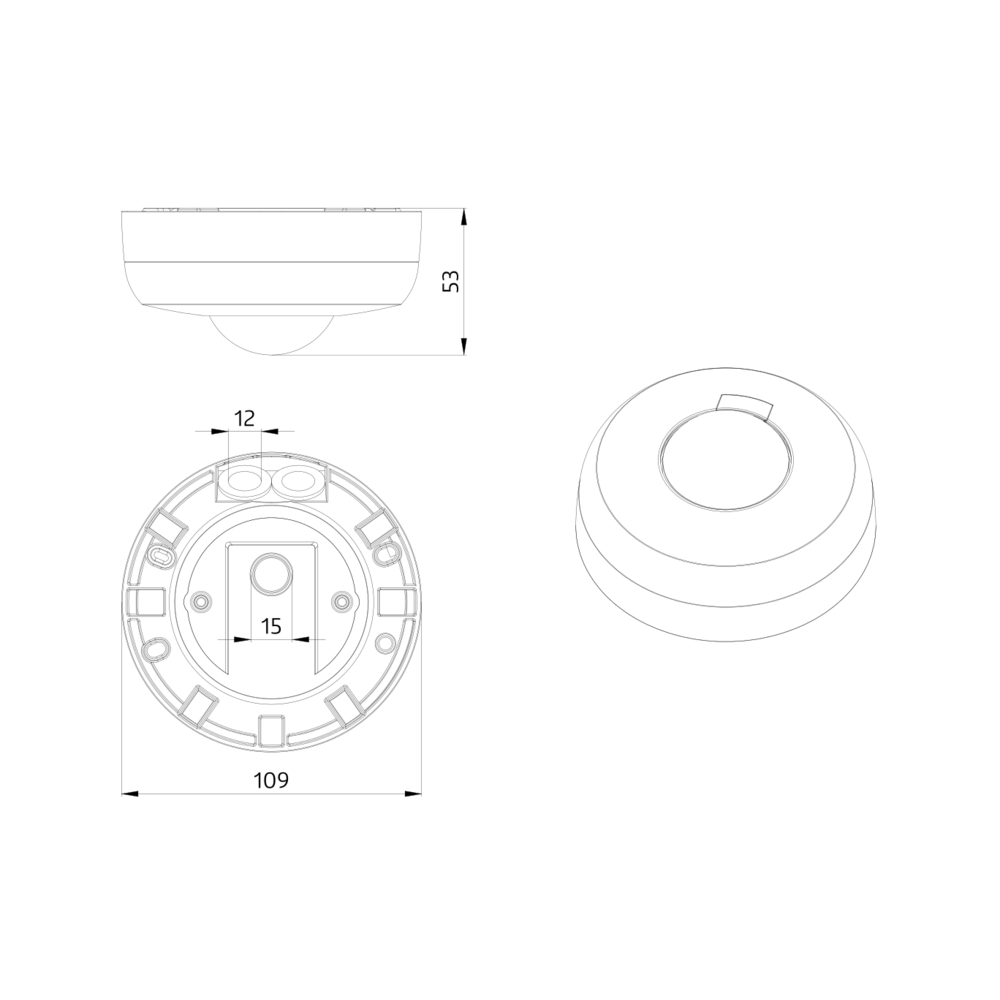

Dimensions: Ø 106 x 53 mm
Power consumption: approx. 0.5 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP44 / Class II
Impact strength: IK04
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: black mat, similar to RAL9005
Channel 1 (lighting control)
Designation Value
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
800 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact (k): 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 30 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux

Remote control-capable ceiling motion detector with integrated acoustic sensor

One channel for light switching

Zero crossing switching

Special optical system for detection of even the smallest movements

Additional functions can be set up using the optional remote control.

Application examples:
toilets, equipment rooms
