24 m

92151 EAN: 4007529921515 PD4N-1C-FM

230V PIR motion detector with 360° coverage and a range of up to Ø24meters (450 m²), remote-controlled

Mounting
flush-mounted
surface-mounted
Show available options
 ceiling-mounted
Show available options
flush-mounted
Range
24.00 m
24.00 m
40.00 m
Show available options
Degree / class of protection
IP20
IP44
Show available options
 IP23
Show available options
IP20
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz

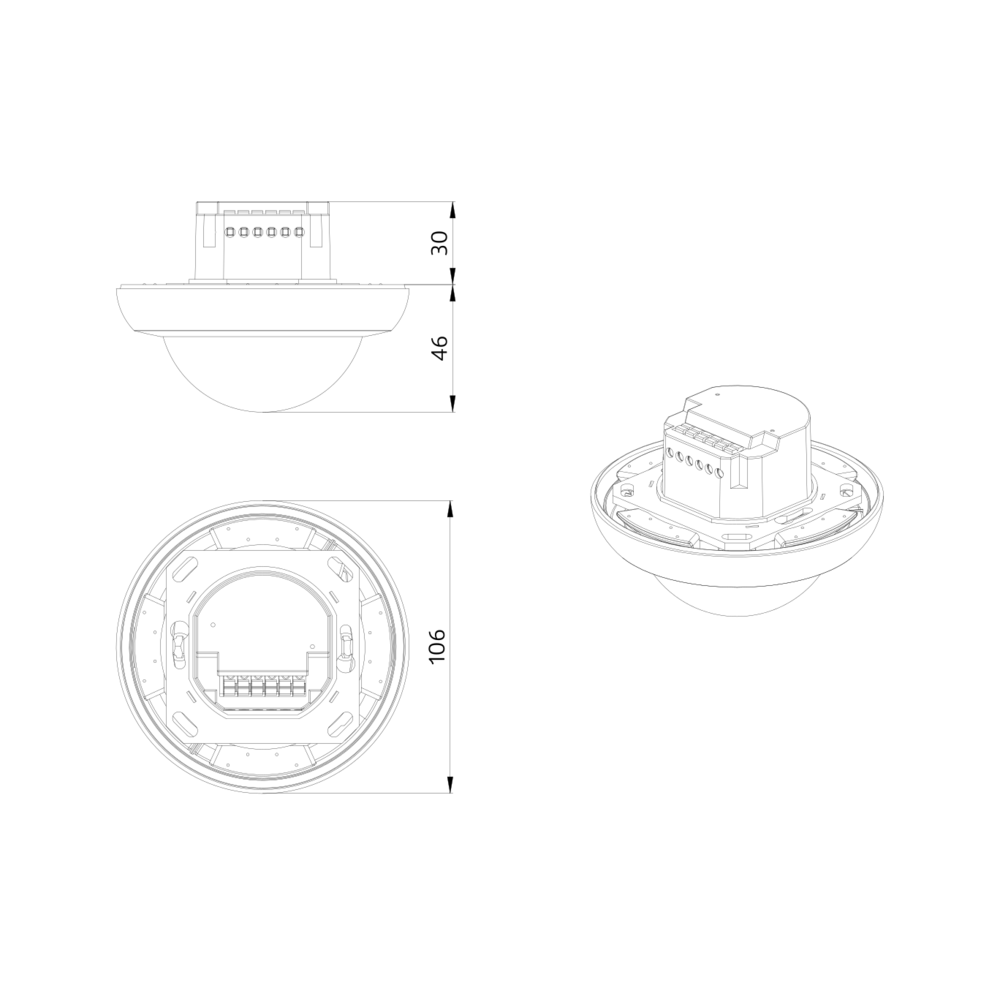

Dimensions: Ø 106 x 76 mm
Power consumption: approx. 0.5 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 24 m across
max. Ø 8 m towards
max. Ø 6.4 m seated
Monitored area (tangential movement): 450 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP20 / Class II
Impact strength: IK04
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Channel 1 (lighting control)
Designation Value
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
800 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact (k): 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux

Remote-control capable ceiling motion detector with large detection range

One channel for light switching

Zero crossing switching

Special optical system for detection of even the smallest movements

Uninterrupted parallel circuit detection of several detectors

Manual switching via push-button possible

Additional functions can be set up using the optional remote control.

Factory settings 10 min and 500 lux

Application examples:
corridors/hallways, toilets, equipment rooms

10880
